Install the holder of the positive battery cable
WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

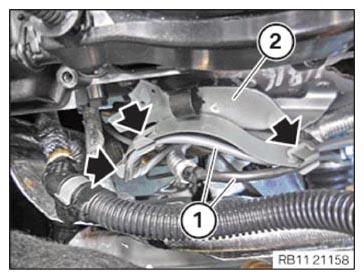

- Feed in bracket (2) of positive battery cable and position.
- Fasten cable (1) in clamps (arrows).
- Version A (without mild hybrid technology): CAUTION: Improper routing of the positive battery cable .
Risk of short circuits!- Route the positive battery cable without abrasions and do not trap.

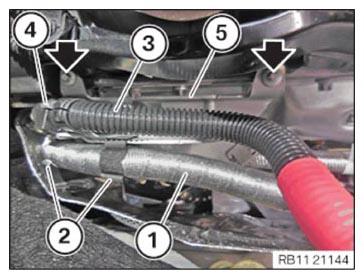

- Feed in bracket (5) of positive battery cable and position.
- Tighten screws (arrows).TIGHTENING TORQUE SPECIFICATIONS
Holder, positive battery cable to cylinder head cover 6X18 Tightening torque 6 Nm - Secure the positive battery cable (1) at the clamps (2).
- Secure the positive battery cable (3) at the clamps (4).
- Version B (with mild hybrid technology): CAUTION: Improper routing of the positive battery cable .
Risk of short circuits!- Route the positive battery cable without abrasions and do not trap.

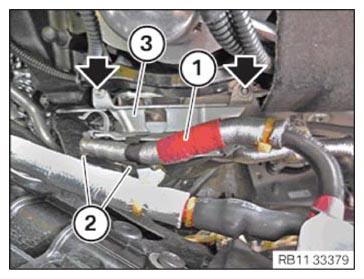

- Feed in bracket (3) of positive battery cable and position.
- Tighten screws (arrows).TIGHTENING TORQUE SPECIFICATIONS
Holder, positive battery cable to cylinder head cover 6X18 Tightening torque 6 Nm - Secure the positive battery cable (1) at the clamps (2).
