Install the front output shafts (on the mobile lifting table)

WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

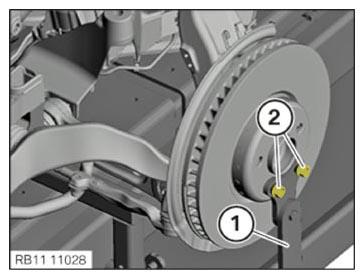

Loosen screws (2).
Remove the swivel bearing mount (1) and set it aside.
Suspend the swivel bearing from the workshop crane 2 220 718 .

Courtesy of BMW OF NORTH AMERICA, INC.

Check
Replace the circlip (1).
Parts: Circlip

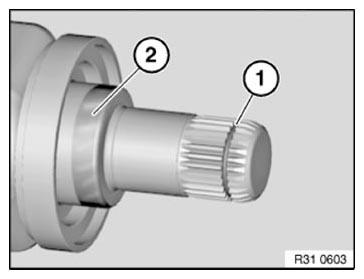

Coat the contact surface (2) of the output shaft with the approved front axle transmission oil, see APPROVED OIL .
Check the gearing for damage or deformation.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» The gearing is deformed or damaged.

Measure

Replace the output shaft.

Parts: Output shaft

Clean and degrease front gearing of wheel bearing (1) and output shaft (2).
Install front gearing of wheel bearing (1) and output shaft (2) and establish a positive connection.
By twisting of both the wheel hub and the output shaft in arrow direction, ensure that the front gears engage in each other.

Courtesy of BMW OF NORTH AMERICA, INC.

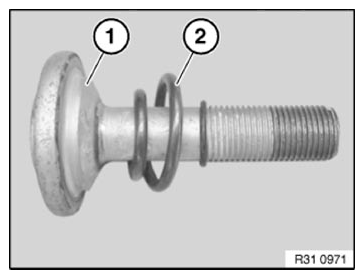

Replace the screw (1) and the compression spring (2).
Parts: Screw, compression spring
Clean and degrease the screw (1).
Observe the installation position of the compression spring (2)!

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
Radial shaft seal ring are equipped with an installation protection ring. The installation protection ring is used to protect the sealing lip when installing the output shaft.

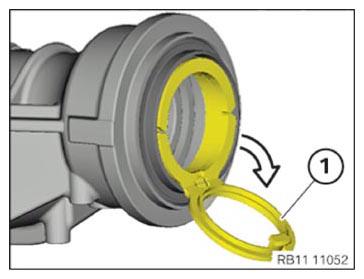

Open the installation protection ring (1) in arrow direction before installing the output shaft.

Courtesy of BMW OF NORTH AMERICA, INC.

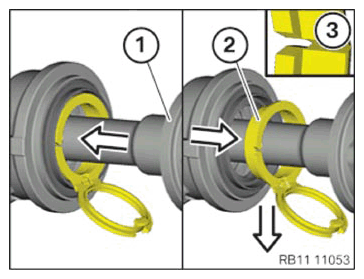

Feed in the output shaft (1) in the direction of the arrow.
Loosen the assembly protection ring (2) guide it out a little.
Pull the assembly protection ring (2) down with force in arrow direction until the predetermined breaking points (3) on the assembly protection ring break.

Courtesy of BMW OF NORTH AMERICA, INC.

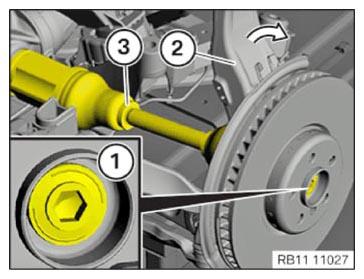

Tilt the swivel bearing (2) slightly forwards in the direction of the arrow.
Insert the output shaft (3) into the front axle differential until the stop is reached and until you can feel the output shaft engaging.
Tighten screw (1) with the special tool 0 490 504 (00 9 120) .

TIGHTENING TORQUE SPECIFICATIONS

Output shaft to wheel bearing
M16 Replace collar screw and spring.	Joining torque	210 Nm
	Angle of rotation	90°

Courtesy of BMW OF NORTH AMERICA, INC.

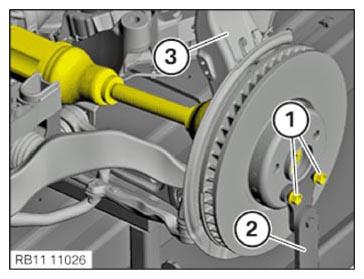

Install the stand (2) of the swivel bearing (3).
Tighten down screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

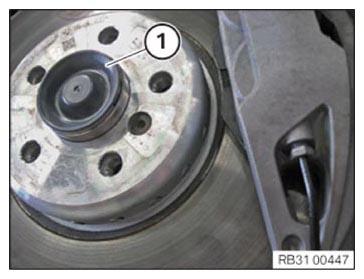

Attach the sealing cap (1).

Courtesy of BMW OF NORTH AMERICA, INC.
