Install bearing bracket
WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

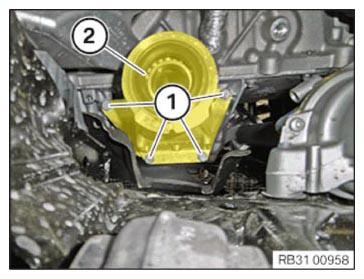

- Coat the O-ring (1) with front axle transmission oil.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
- Position the bearing bracket (2) at the engine oil pan.
- Tighten down screws (1).
TIGHTENING TORQUE SPECIFICATIONS
| Bearing bracket to engine oil pan
. |
| M8 |
Tightening torque |
19 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
