Removing roller cover for luggage compartment (electrical)

WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Prerequisite

The electrical roller cover for luggage compartment has been raised.

NOTE: Perform the steps on the right and left side.

Carefully unclip roller cover (1) forwards out of the driver (2).

Courtesy of BMW OF NORTH AMERICA, INC.

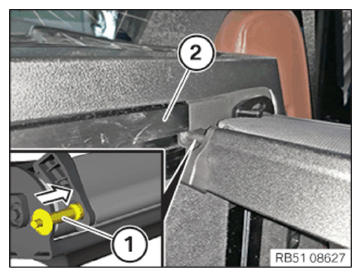

Guide the guide pin (1) out of the guide rail (2) (push guide pin in direction of arrow).

Courtesy of BMW OF NORTH AMERICA, INC.
Remove cover (1).
Loosen screws (2).
Remove the roller cover.

Courtesy of BMW OF NORTH AMERICA, INC.
