Installing the roller cover for luggage compartment (electrical)

WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Prerequisite

Electrical roller cover for luggage compartment has been raised.

NOTE: Perform the steps on the right and left side.

Install the roller cover for luggage compartment.

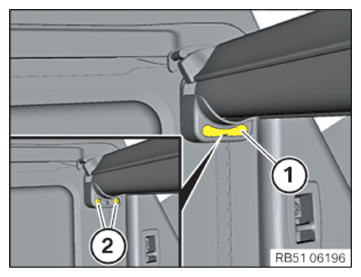

Tighten down screws (2).

TIGHTENING TORQUE SPECIFICATIONS

Roller cover for luggage compartment to drive unit
screw	Tightening torque	2.0 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Install cover (1).

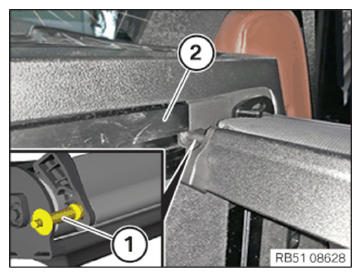

Engage the guide pin (1) in the guide rail (2).

Courtesy of BMW OF NORTH AMERICA, INC.

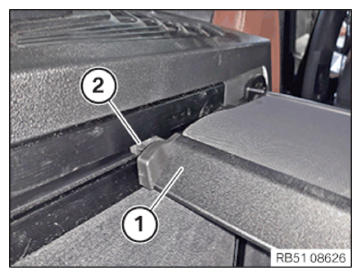

Carefully pull the roller cover for luggage compartment (1) to the rear and snap into place in the driver (2).

Courtesy of BMW OF NORTH AMERICA, INC.

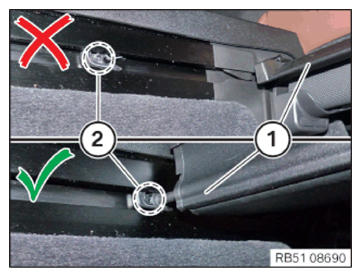

Check whether the roller cover for luggage compartment (1) is correctly engaged in the driver (2).

Courtesy of BMW OF NORTH AMERICA, INC.
