Remove luggage compartment floor covering
WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
Remove the rear luggage compartment floor covering
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.
- Lift the luggage compartment floor covering.
- Push the clamp (1) into removal position (2).
- Detach the gas pressure spring (3) from the ball head.

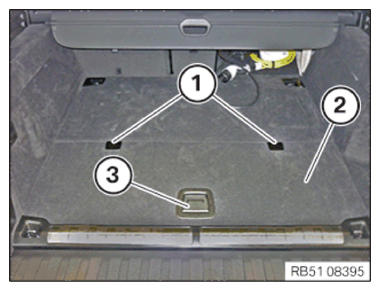

- Remove covers (1) and unscrew screws below.
- Unlock the luggage compartment floor covering (2) at the handle (3), lift it slightly and guide it to the rear and out of the vehicle.
Remove front luggage compartment floor covering
- Loosen and remove the luggage compartment floor covering (1) upwards at the clips (2).
