Removing the right rear tension strut
WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Description is for left component only. Procedure on the right side is identical.
Removing the rear tension strut
NOTE:
TECHNICAL INFORMATION
Driving without the strut brace/front-end strut or tension strut is not permitted.

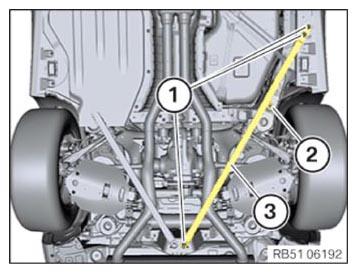

- Unscrew the bolts (1) and the nut (2).
- Remove tension strut (3).
 Courtesy of BMW OF NORTH AMERICA, INC.
|
