Section 191 (General Orphan Data (3 Of 7))
>>
Removing the right cowl upper part
Removing the right cowl upper part
WARNING:
This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

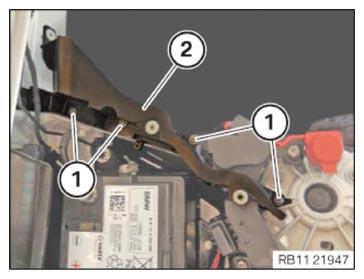

Loosen screws (1).
Feed out and remove cowl upper part (2).
Courtesy of BMW OF NORTH AMERICA, INC.
