Removing the intake filter housing (tension strut on shock tower removed)

WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Prerequisite

The tension strut on the shock tower is removed.

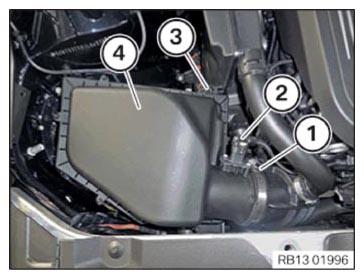

Unfasten circlip (1).
Unlock and detach the connector (2) of the hot film air mass meter.
Loosen screw (3).
Pull out and remove the intake silencer housing (4) from the rubber mounts towards the top.
