Remove the front output shafts (on the mobile lifting table)
WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

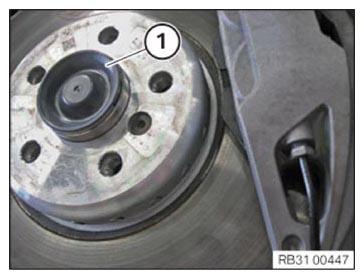

- Remove the sealing cap (1).

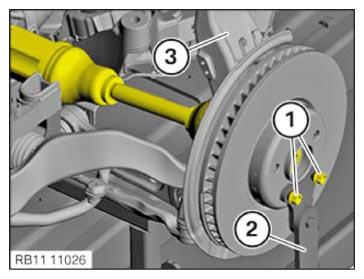

- Loosen screws (1).
- Remove the swivel bearing (2) and set it aside.
- Hold the swivel bearing (3) with the workshop crane 2 220 718
.

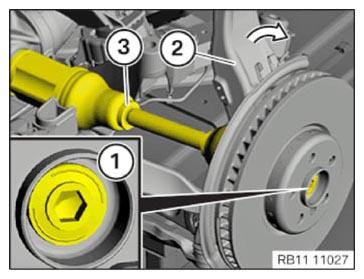

- Loosen screw (1).
- Tilt the swivel bearing (2) slightly forwards in the direction of the arrow.
- Loosen and remove the output shaft (3) at the front axle differential with a suitable tool.

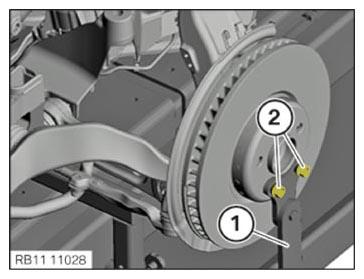

- Install the stand (1) of the swivel bearing.
- Tighten down screws (2).
