Check/add front axle transmission oil
WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly
.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Observe safety instructions on raising the vehicle using a vehicle hoist.
- For additional information see: RAISING THE VEHICLE WITH A VEHICLE LIFT .
WARNING:
Hot surfaces
.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.
CAUTION:
Materials harmful to health
.
Contact with fluids harmful to health!
Contact with fluids harmful to health!
- Note and follow safety instructions on containers.
- Conduct all work in appropriate personal protective equipment only.
Preliminary work
- Refer to REMOVING THE FRONT LEFT WHEEL .
- Refer to REMOVING THE COVER OF THE STEERING ASSEMBLY ON THE LEFT AND RIGHT .
- Refer to REMOVING THE STIFFENING PLATE .
NOTE:
RISK OF DAMAGE
Damage to the front axle differential .
Failure to comply with the oil specifications can result in serious damage to the front axle differential .
Damage to the front axle differential .
Failure to comply with the oil specifications can result in serious damage to the front axle differential .
- Use only the approved front axle transmission oil.
NOTE:
TECHNICAL INFORMATION
Filling to the lower edge of the oil filler opening means that the front axle differential is overfilled. In some cases, this may lead to emerging oil from the ventilation opening on the front axle differential.
After having drained the front axle transmission oil, repair the front axle differential or upon initial filling of a new replacement front axle differential, the transmission must be filled with 450 ml of oil.
Filling to the lower edge of the oil filler opening means that the front axle differential is overfilled. In some cases, this may lead to emerging oil from the ventilation opening on the front axle differential.
After having drained the front axle transmission oil, repair the front axle differential or upon initial filling of a new replacement front axle differential, the transmission must be filled with 450 ml of oil.
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
- Place oil collecting apparatus underneath.

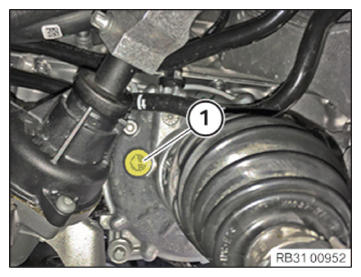

- Release the oil filler plug (1).
- Drain and dispose of front differential oil.
- Replace (1) screw plug.
Parts : Plug
- Tighten the oil filler plug (1).TIGHTENING TORQUE SPECIFICATIONS
Screw plug to front axle transmission M22
Replace screw plug with O-ring.Tightening torque 60 Nm NOTE: TECHNICAL INFORMATION
With the predefined filling capacity, it is imperative to take into account the filling capacity in the hose of the special tool. - Use the special tool 2 460 340
for filling up the front axle oil.
- Release the oil filler plug (1).
- Fill the front axle transmission with front axle transmission oil.TECHNICAL DATA SPECIFICATIONS
Front axle transmission oil Front axle transmission capacity 450 ml - Replace (1) screw plug.
Parts : Plug
- Tighten the oil filler plug (1).TIGHTENING TORQUE SPECIFICATIONS
Screw plug to front axle transmission M22
Replace screw plug with O-ring.Tightening torque 60 Nm
Follow-up work
- Refer to INSTALLING THE STIFFENING PLATE .
- Refer to INSTALLING THE COVER OF THE STEERING ASSEMBLY ON THE LEFT AND RIGHT .
- Refer to ATTACHING THE FRONT LEFT WHEEL .
