Install left clean air pipe

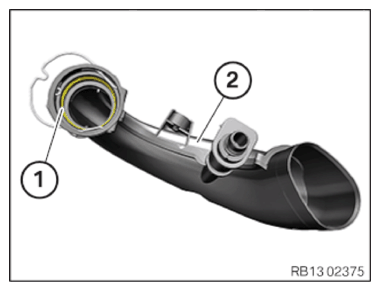

• Check the sealing ring (1) of the left clean air pipe (2) for damage; if necessary, replace it.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Guide in and install the left clean air pipe (2).

  Lock (1) must engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect the connector (1) to the charge-air temperature sensor (2) and lock it.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE LEFT ENGINE VENTILATION LINE (PARTIALLY REMOVED) .
• Refer to CONNECTING THE LEFT CHARGE AIR LINE TO THE EXHAUST TURBOCHARGER .
• Refer to INSTALLING THE CARRIER PLATE .
• Refer to INSTALLING BOTH INTAKE FILTER HOUSING  .
• Refer to INSTALLING ACOUSTIC COVER .
