Check the VANOS adjuster of cylinder bank 2

Check

• Check the lock of intake and exhaust camshaft adjusters.

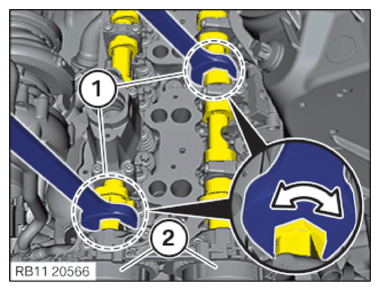

• Position open-end spanner (1)  on the hexagon head of the camshaft (2)  .
• Move open-end spanner slightly back and forward in direction of arrow.
• The camshafts must have a frictional connection to the VANOS adjusters (2)  .

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» Camshafts are connected to the VANOS adjusters (2)  with frictional connections.

Measure

• Continue the repair with the next step.

Result

» If no frictional connection exists, replace the affected VANOS adjuster.

Measure

• Replace the affected VANOS adjuster.

Measure

• Check timing again.
