Installing rear door window glass (fixed)

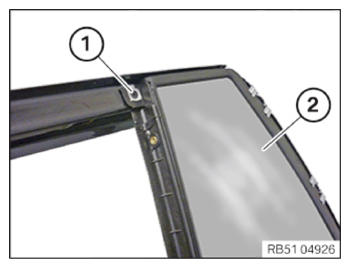

• Insert the door window glass (2) in the door.
• Insert the door window glass (2) on top in the door.
• Tighten down screw (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Door window glass to door window frame
  Screw 4.2x19
  	Tightening torque	2.5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

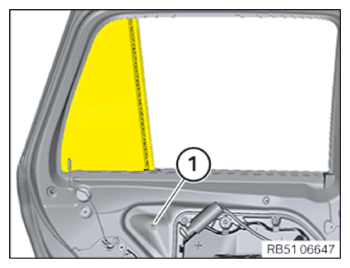

• Tighten down screw (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Door window glass to inner door panel
  screw
  	Tightening torque	7.6 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

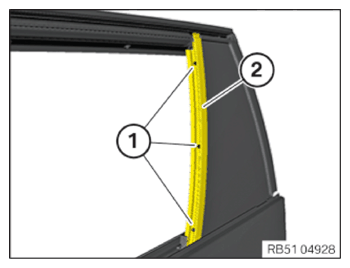

• Insert the window guide rail (2) in the door.
• Tighten the screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Window guide rail
  screw
  	Tightening torque	2 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

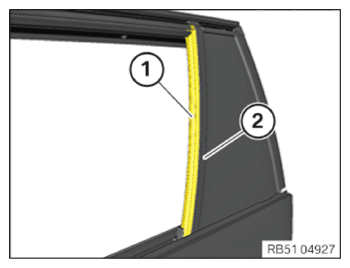

• Mount the rubber window seal (1) in the window guide rail (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE COVER ON THE INSIDE OF THE WINDOW FRAME AT THE REAR .
• Refer to INSTALLING THE WINDOW CHANNEL STRIP OF THE INNER REAR DOOR .
• Refer to INSTALLING REAR DOOR TRIM PANEL .
• Refer to INSTALLING THE OUTER WINDOW CHANNEL STRIP ON THE REAR DOOR .
