Installing the module bracket on the front door

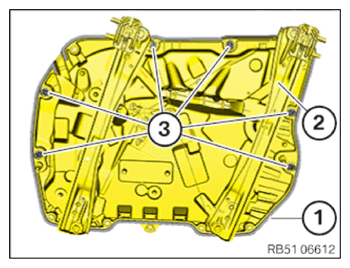

• Check the peripheral seal (1) of the module bracket (2) for damage.

  If the seal (1) is damaged, the module carrier (2) must be replaced.

• Open all the snap fasteners (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

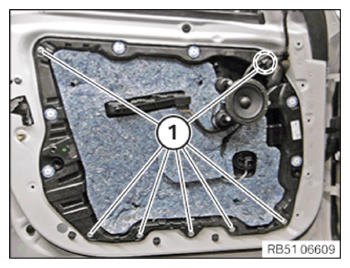

• Feed in the module bracket (2) and close the snap fasteners (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

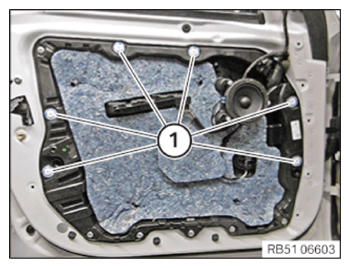

• Tighten the screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Module bracket to door
  screw
  	Tightening torque	8 Nm

• Secure the wiring harness to all cable clips.
• Connect and lock all connectors to the module bracket (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

  Disconnecting all battery ground leads

• Courtesy of BMW OF NORTH AMERICA, INC.

• Shift the power window upwards until the side window glass correctly engages in both holders.
• Remove adhesive tape.

Follow-up work

• Refer to INSTALLING THE WINDOW CHANNEL STRIP ON THE FRONT DOOR ON THE OUTSIDE .
• Refer to MOUNTING THE OUTSIDE REARVIEW MIRROR ONTO THE FRONT DOOR .
• Refer to INSTALLING FRONT DOOR TRIM PANEL .
• Refer to MOUNTING THE MIRROR TRIANGLE COVER .
• Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
