Removing the positive battery cable from the alternator to the auxiliary terminal for jump starting
WARNING:
Working on 12 V electrical system
.
Risk of short circuits! Risk of fire!
Risk of short circuits! Risk of fire!
- Make sure that there is no charger connected to the jump start terminal in the engine compartment.
- Detach battery ground lead from battery.
- For auxiliary batteries: Detach battery minus cables from all auxiliary batteries.
NOTE:
RISK OF DAMAGE
Damage to battery terminal, the safety battery terminal or the intelligent battery sensor (IBS) .
Damaged battery terminals can lead to malfunctions or vehicle electrical system faults .
Damage to battery terminal, the safety battery terminal or the intelligent battery sensor (IBS) .
Damaged battery terminals can lead to malfunctions or vehicle electrical system faults .
- Detach battery terminal from battery pole by carefully shifting to and fro. Do not pry off using a tool.
Preliminary work
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to BRINGING FRONT COMPARTMENT LID IN THE SERVICE POSITION .
- Refer to REMOVING THE ACOUSTIC COVER .
- Refer to REMOVING ACOUSTIC COVER AT REAR .
- Refer to REMOVING TANK VENT VALVE .
- Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
- Refer to REMOVING THE STIFFENING PLATE .
- Refer to REMOVING THE COVER OF THE STEERING ASSEMBLY .
- Refer to DRAINING THE COOLANT FROM THE LOW-TEMPERATURE COOLING SYSTEM .
- Refer to CONNECTING THE COOLANT LINE TO THE AUXILIARY COOLANT PUMP .
- Refer to REMOVING LOW-TEMPERATURE COOLANT EXPANSION TANK .
- Refer to REMOVING THE INTAKE PLENUM .
- Refer to REMOVING RIGHT SUSPENSION STRUT BRACE .
- Refer to REMOVING TRAILING LINK AT SPRING BOLT .
- Refer to REMOVING THE ENGINE CONTROL UNIT COVER .

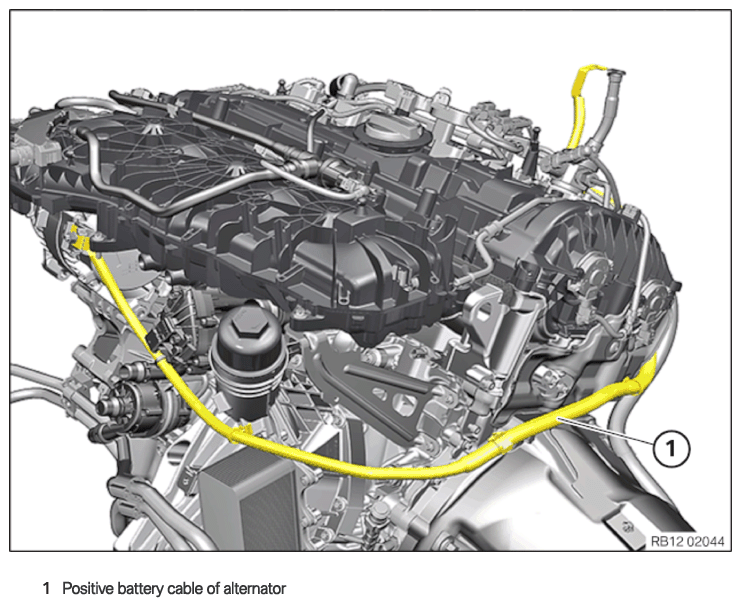

Positive battery cable of alternator
WARNING:
Working on 12 V electrical system
.
Risk of short circuits! Risk of fire!
Risk of short circuits! Risk of fire!
- Make sure that there is no charger connected to the jump start terminal in the engine compartment.
- Detach battery ground lead from battery.
- For auxiliary batteries: Detach battery minus cables from all auxiliary batteries.
WARNING:
Hot surfaces
.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.
- Unlock the locks (1).
- Guide and remove cover (2) in arrow direction.
- Unfasten nut (1).
- Thread out positive battery cable (2) and set it aside.
- Release the positive battery cable (1) from the clamp (arrow) and set it aside.
- Release the holder (arrows).
- Thread out positive battery cable (1) and set it aside.
- Unfasten nut (1).
- Thread out positive battery cable (2) and set it aside.
- Loosen clamp (1).
- Unlock the lock (arrow) and thread out the positive battery cable (2) and set it aside.
- Remove positive battery cable (1) and remove.
