Install the positive battery cable from the alternator to the auxiliary terminal for jump starting

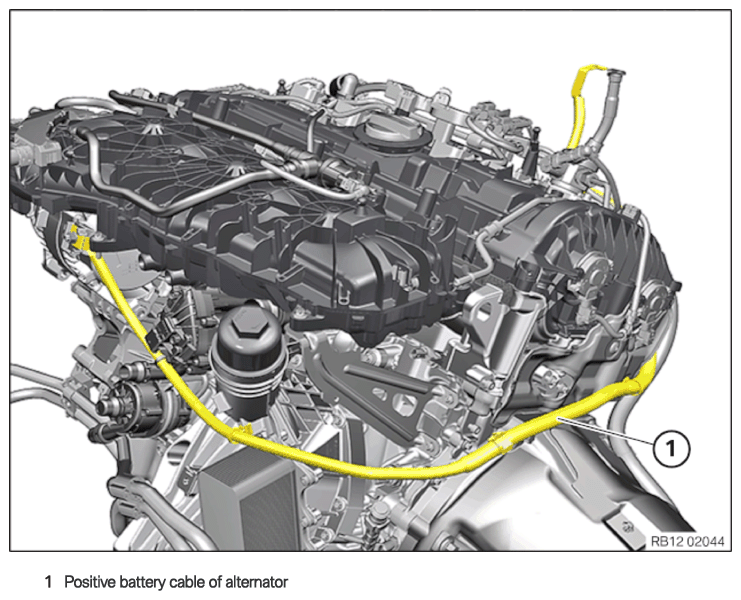

Positive battery cable of alternator

Courtesy of BMW OF NORTH AMERICA, INC.

Precondition

• Insert and install the positive battery cable (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Insert and install the positive battery cable (2)  .
• Secure clamps (1)  .
• Make sure the locking mechanism (arrow) engages correctly.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Insert and install the positive battery cable (2)  .
• Tighten nut (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.

• Fasten the positive battery cable (1)  with the holders (arrows).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Secure the positive battery cable (1)  with the clamp (arrow).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Insert and install the positive battery cable (2)  .
• Tighten nut (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.

• Insert and install the cover (2)  in the direction of the arrow.

  The locks (1)  must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE ENGINE CONTROL UNIT COVER .
• Refer to INSTALLING TENSION STRUT ON SHOCK TOWER .
• Refer to INSTALLING THE RIGHT STRUT BRACE .
• Refer to INSTALLING THE INTAKE PLENUM .
• Refer to INSTALLING THE TANK VENT VALVE .
• Refer to INSTALLING THE LOW-TEMPERATURE COOLANT EXPANSION TANK .
• Refer to FILLING THE LOW-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
• Refer to VENTING THE LOW-TEMPERATURE COOLING SYSTEM .
• Refer to CHECKING LOW-TEMPERATURE COOLING SYSTEM FOR WATERTIGHTNESS .
• Refer to INSTALLING THE COVER OF THE STEERING ASSEMBLY .
• Refer to INSTALLING THE STIFFENING PLATE .
• Refer to INSTALLING FRONT UNDERBODY PROTECTION .
• Refer to INSTALLING ACOUSTIC COVER AT REAR .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
• Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
