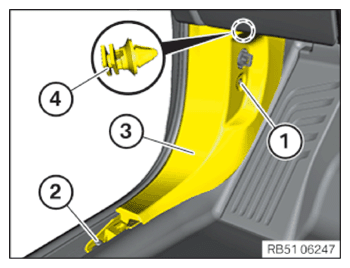

Install the side trim panel in the footwell at the left A-pillar

• Check clip (4) for damage and, if necessary, replace it.
• Position the side trim panel (3) and engage on clip (4).
• Make sure that the side trim panel (3) is correctly fitted against edge protection.
• Install the expanding rivet (2).
• Tighten down screw (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUE SPECIFICATIONS



  Side trim panel in footwell on A-pillar
  screw
  	Tightening torque	2.8 Nm

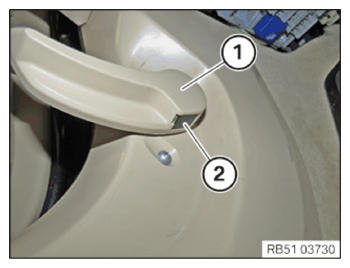

• Install hood release lever (1).
• Pull the hood release lever (1) to the rear.
• Install the locking mechanism (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE TRIM PANEL FOR THE PEDAL ASSEMBLY .
• Refer to INSTALLING THE FRONT DOOR SILL COVER STRIP .
