Installing the rear wheel arch trim

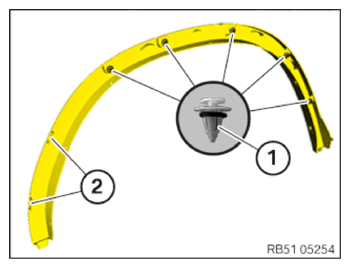

- Check the clips (1) for damage and replace where required.
The clips (1) must not be damaged or missing.
- Make sure that the clips (1) are always installed with the sealing ring.
- Check detents (2) for damage.
The detents (2) must not be damaged or missing.

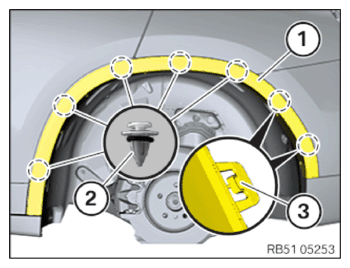

- Install wheel arch trim (1) and clip in with the clips (2).
- Engage wheel arch trim (1) on the detents (3).
