Installing the tailgate trim panel

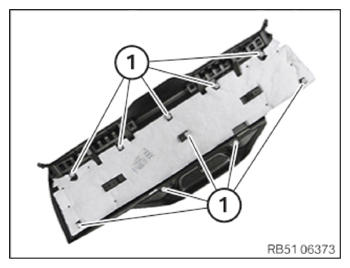

• Check if clips (1) are present and check them for damage.

  Damaged or missing clips (1) must be replaced.

  Courtesy of BMW OF NORTH AMERICA, INC.

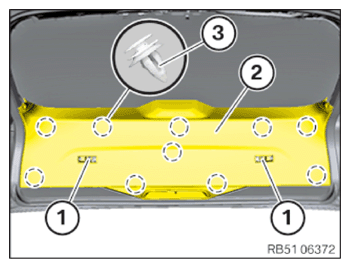

• Position tailgate trim panel (2) correctly and clip in at the clips (3).
• Tighten down screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Tailgate trim panel to trunk lid
  Oval-head screw
  	Tightening torque	1.5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING TRUNK COMPARTMENT LIGHT ON TRUNK LID .
• Refer to INSTALLING THE POWER TAILGATE SWITCH .
• Refer to INSTALLING THE TRIM FOR THE LEFT AND RIGHT SIDE REAR WINDOW FRAME .
• Refer to INSTALLING THE TRIM FOR THE TOP REAR WINDOW FRAME  .
