Removing the loading edge trim

Precondition

• Luggage compartment floor trim Is raised

Preliminary work

• Refer to REMOVING THE FLAP FROM THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON THE LEFT .
• Refer to REMOVING THE FLAP IN THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON THE RIGHT .
• Refer to REMOVING STORAGE COMPARTMENT AT LEFT .
• Refer to REMOVING THE RIGHT STORAGE COMPARTMENT .

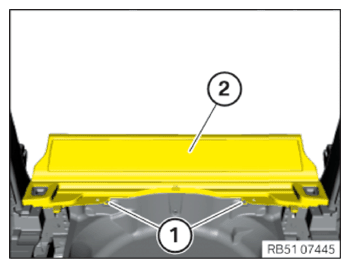

• Loosen screws (1)  .
• Slide the loading edge trim (2)  to the front a little and feed out of the rear guides.
• Remove the loading edge trim (2)  .

  Courtesy of BMW OF NORTH AMERICA, INC.
