Remove the D-pillar trim panel

Preliminary work

Refer to REMOVING THE STRAP FITTING FOR THE THIRD-ROW SEATING AT REAR ON THE BODY .

WARNING: Airbag unit .
Danger! Immobilization period-threatening injuries!

Before performing any work on the airbag, always disconnect the battery ground lead from the battery.
Airbag unit may only be set down with the cushion (airbag itself) facing upwards.
For additional information see: 72 00... SAFETY REGULATIONS ON HANDLING AIRBAG SYSTEM COMPONENTS/GAS GENERATORS

WARNING: Pyrotechnic components .
Danger! Immobilization period-threatening injuries!

All work on pyrotechnic parts may be carried out by technically experienced and appropriately trained personnel only.
Replace any damaged part or ones that have been dropped.
For additional information see: 72 00... SAFETY REGULATIONS ON HANDLING AIRBAG SYSTEM COMPONENTS/GAS GENERATORS

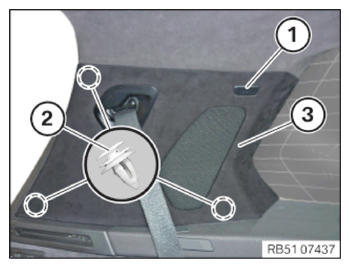

Lever out the cover panel (1) from the D-pillar trim panel (3) with a suitable tool.
Release screw underneath.
Release the D-pillar trim panel (3) at the clips (2) and feed out.
