Installing the armrest on the side trim panel

• Insert the new armrest into the side trim panel.

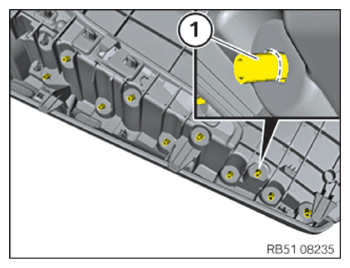

• Mark all welding pins (1) flush with the side trim panel as shown.

  Welding pins (1) must not protrude from the side trim panel  .

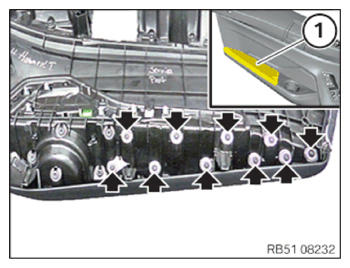

• Remove the armrest once more and cut out all welding pins (1) on the marks.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Install the armrest (1).
• Screw in the repair screw (1) with the washers and tighten.
  TIGHTENING TORQUE SPECIFICATIONS



  Armrest on side trim panel
  Screw
  	tightening torque	1.8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE SIDE TRIM PANEL UPPER SECTION AT REAR LEFT .
• Refer to INSTALLING D-PILLAR TRIM PANEL .
• Refer to INSTALLING C-PILLAR TRIM PANEL .
