Installing the side trim panel upper section at rear left

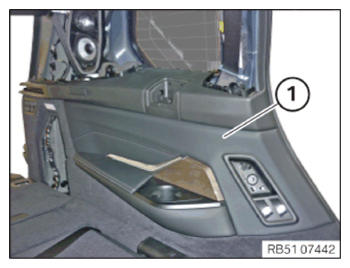

• Feed in the side trim panel upper section (1) on the lower section of side trim panel and correctly position.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screws (2).
  TIGHTENING TORQUE SPECIFICATIONS



  Luggage compartment mount on body
  M6x20 screw
  	tightening torque	8.0 Nm

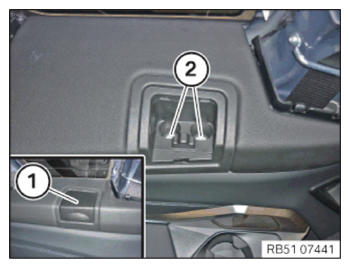

• Mount the cover (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screw (2).
  TIGHTENING TORQUE SPECIFICATIONS



  Switch for easy entry, rear
  M6X19 screw
  	tightening torque	4.0 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

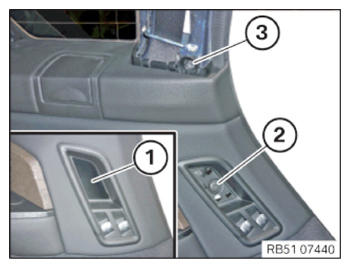

• Mount the cover (1).
• Tighten down screw (3).
  TIGHTENING TORQUE SPECIFICATIONS



  Side trim panel to body
  Screw M6x19
  	tightening torque	4.0 Nm

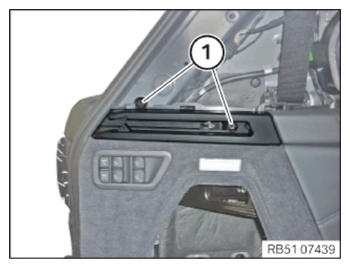

• Tighten down screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Side trim panel to body
  Screw M6x19
  	tightening torque	4.0 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING D-PILLAR TRIM PANEL .
• Refer to INSTALLING C-PILLAR TRIM PANEL .
