Install the module bracket on the rear door

Check

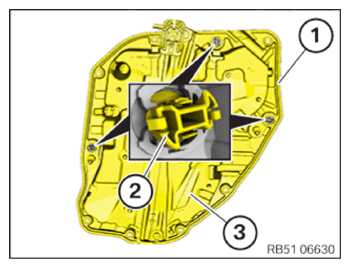

• Check the peripheral seal (1) on the module bracket (3) for damage.
• Check locks (2) for damage.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Result

  » Seal (1) on the module bracket (3) is damaged.

  Measure

  • Replace the module bracket (3).

  Result

  » Locks (2) are damaged.

  Measure

  • Replace the locks (2).

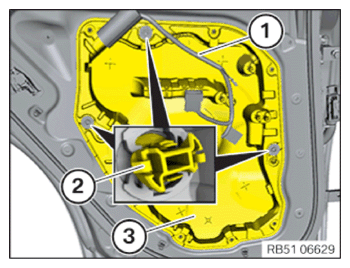

• Position the module bracket (3) correctly and close the locks (2).
• Clip in the wiring harness (1) to the module bracket (3) and connect and lock the connectors.

  Courtesy of BMW OF NORTH AMERICA, INC.

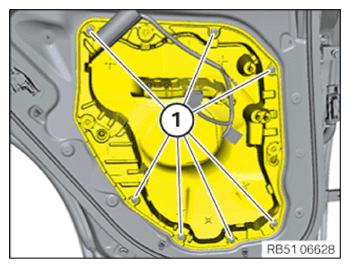

• Tighten down screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Module bracket to door
  screw
  	Tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

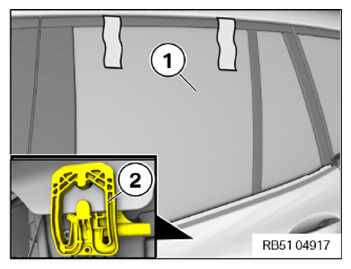

• Release the adhesive tapes and lower the door window glass (1) manually until the door window glass (1) snaps into the holder (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING REAR DOOR TRIM PANEL .
• Refer to INSTALLING THE OUTER WINDOW CHANNEL STRIP ON THE REAR DOOR .
