Installing left fanfare horn
NOTE:
TECHNICAL INFORMATION
Only replace the fanfare horn complete with the holder.
Only replace the fanfare horn complete with the holder.

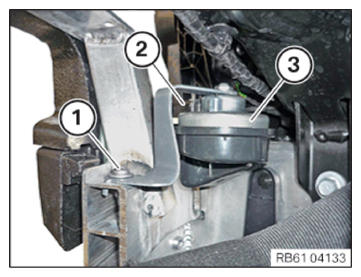

- Position the fanfare horn (3) with the holder.
- Connect connectors (2) and lock.
- Tighten down screw (1).TIGHTENING TORQUES SPECIFICATION
Fanfare horn to support for bumper cover M6x20 screw Tightening torque 8.8 Nm
Follow-up work
- Refer to INSTALLING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER .
- Refer to MOUNTING THE WHEEL .
