Tightening the oil drain plug

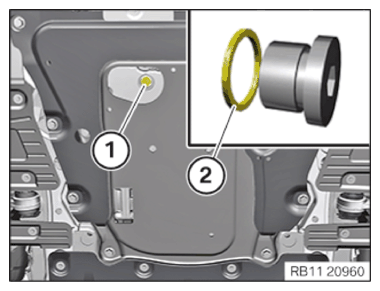

- Replace the sealing ring (2)
at the oil drain plug.
Parts: Sealing ring
- Insert and install the sealing ring (2) at the oil drain plug.
- Insert and install oil drain plug (1) .
- Tighten oil drain plug (1). TIGHTENING TORQUE SPECIFICATIONS
Oil drain plug on oil sump M18x1.5
Replace the sealing ring.tightening torque 40 Nm
