Seal all vents on the headlight

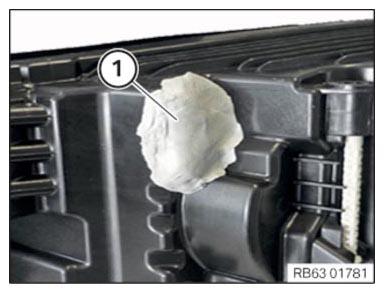

- All vents on the headlight must be sealed with butyl (1) for the pressure test.
CONSUMABLE SPECIFICATION
| Butyl cord | 7 mm, 10 m roller | 83195A1B479 |

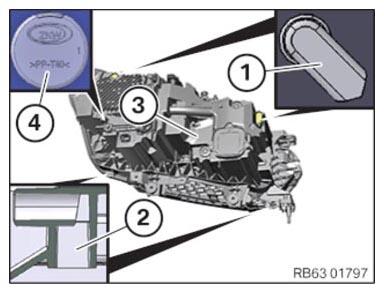

- Remove all vents (1) and (4) on headlight (3) and seal the holes below with butyl.
- Seal all vents (2) on headlight (3) with butyl.
NOTE:
Depending on the headlight version, the vents may be located at different locations.
