Removing the trim for the left and right side rear window frames
NOTE:
Perform the steps on the left and right side.
Remove the trim for the rear window frame
NOTE:
Description is for left component only. Procedure on the right side is identical.

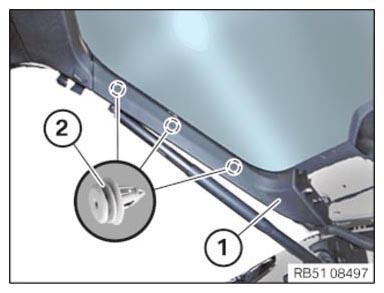

- Release the trim (1) for the rear window frame at the clips (2) and remove.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
