Removing the left oxygen sensor monitor
NOTE:
TECHNICAL INFORMATION
Grease the threads of new oxygen sensors thinly and evenly.
For oxygen sensors that are reused, the following should be observed:
Thinly and evenly grease the oxygen sensor on the thread only. Do not clean the part of the oxygen sensor that does not protrude into the exhaust line (sensor ceramics) and do not grease.
For additional information see: OVERVIEW OF CONSUMABLES (APPLICABLE PARTS CATALOGUE) .
Grease the threads of new oxygen sensors thinly and evenly.
For oxygen sensors that are reused, the following should be observed:
Thinly and evenly grease the oxygen sensor on the thread only. Do not clean the part of the oxygen sensor that does not protrude into the exhaust line (sensor ceramics) and do not grease.
For additional information see: OVERVIEW OF CONSUMABLES (APPLICABLE PARTS CATALOGUE) .

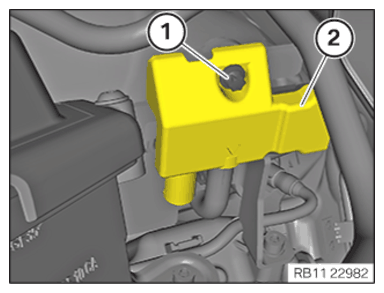

- Equipment specification with gasoline particulate filter:
Loosen screw (1).
- Equipment specification with gasoline particulate filter:
Remove the cover of the gasoline particulate filter (2) on the left.

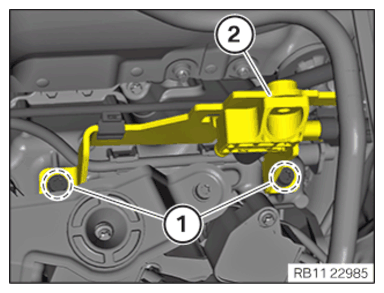

- Equipment specification with gasoline particulate filter:
Loosen screws (1).
- Equipment specification with gasoline particulate filter:
Put the holder of gasoline particulate filter sensor (2) aside.

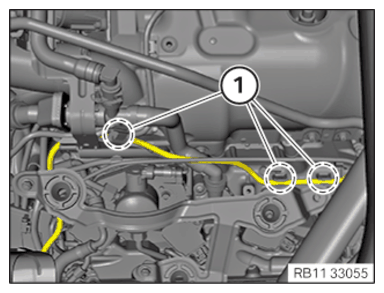

- Release the cable of the oxygen monitor probe in area (1) from the clamps.

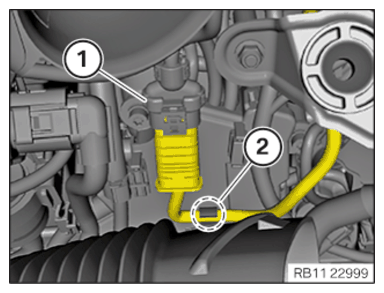

- Release the cable of oxygen sensor monitor probe on the clamp (2).
- Unlock plug connection (1) and disconnect.

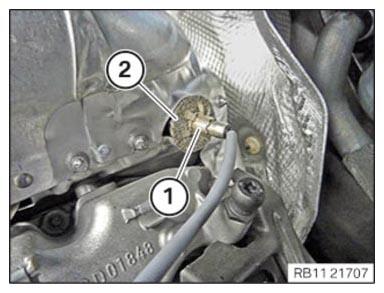

- Release the retaining clip (1).
- Remove the heat protection wire ring (2).

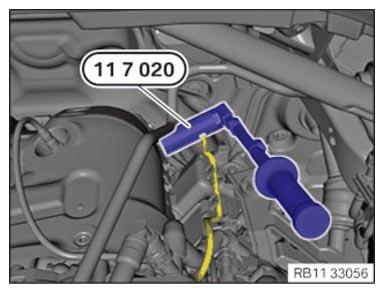

- Release the oxygen sensor monitor on left using special tool 0 491 074 (11 7 020).
- Remove the left oxygen sensor monitor.
