Removing the counter support for the sun visor on the left and right
NOTE:
Description is for left component only. Procedure on the right side is identical.
Removing the counter support for the sun visor

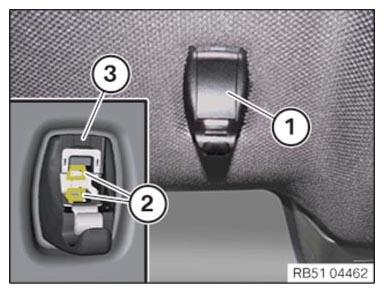

- Pull out the cover (1).
- Push the clamps (2) together and pull the counter support (3) out of the headlining.
Courtesy of BMW OF NORTH AMERICA, INC.
|
