Remove the right and left seat belt finisher strip trim
NOTE:
Description is for left component only. Procedure on the right side is identical.
NOTE:
Perform the steps on the right and left side.

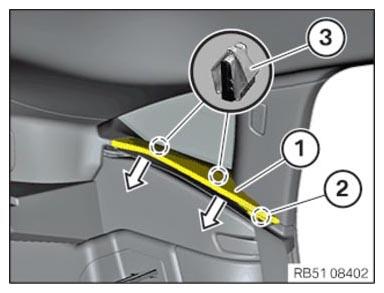

- Release the cover of the seat belt finisher strip (1) at the detent (2).
Unclip the cover of the seat belt finisher strip (1) at the clamps (3) and thread it out.
NOTE:
Perform the steps on the left and right side.
Removing the cover of the seat belt finisher strip
NOTE:
Description is for left component only. Procedure on the right side is identical.
- Release the cover of the seat belt finisher strip (1) at the detent (2).
- Unclip the cover of the seat belt finisher strip (1) at the clamps (3) and thread it out.
