Remove the left and right fog light brackets
NOTE:
Description is for left component only. Procedure on the right side is identical.
Remove fog lamp holders

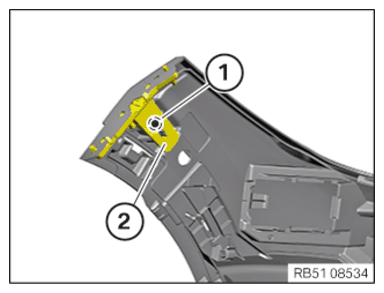

- Loosen screw (1).
- Feed out the holder (2).
- Unlock plug connections and disconnect.

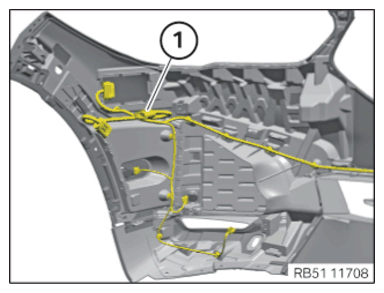

- Release the wiring harness (1) from all clips and remove it from the working area.

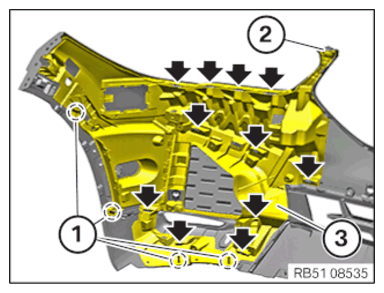

- Loosen blind rivet (1).
- Loosen screw (2).
- Release the fog light support (3) at the detents (arrow) and remove.
