Remove the air duct
Remove the air duct
Unlock plug connections and disconnect.

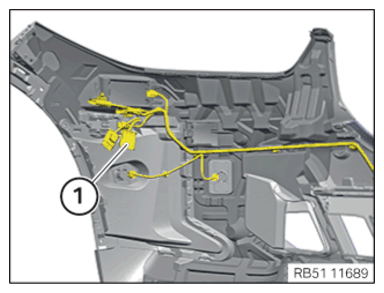

Release the wiring harness (1) from all clips and remove it from the working area.
Courtesy of BMW OF NORTH AMERICA, INC.

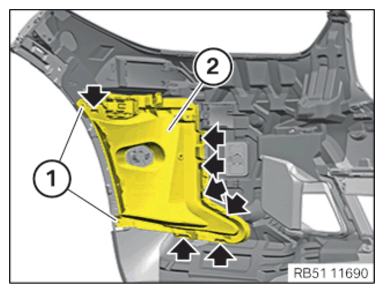

Loosen blind rivet (1).
Release the air duct (2) at the detents (arrows) and remove.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
