Remove fog lamp holders
Remove fog lamp holders

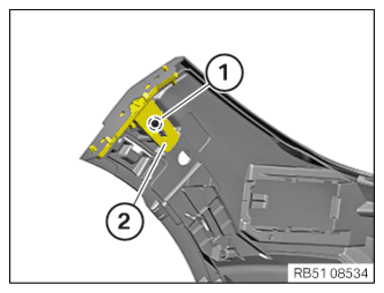

Loosen screw (1).
Feed out the holder (2).
Courtesy of BMW OF NORTH AMERICA, INC.

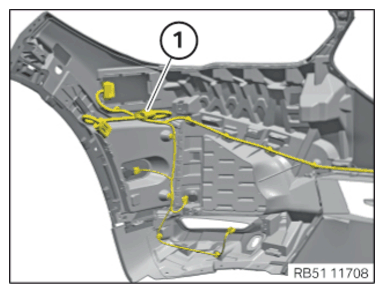

Unlock plug connections and disconnect.
Release the wiring harness (1) from all clips and remove it from the working area.
Courtesy of BMW OF NORTH AMERICA, INC.
Loosen blind rivet (1).
Loosen screw (2).
Release the fog light support (3) at the detents (arrow) and remove.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
