Remove air duct
- Release the wiring harnesses from the air duct.

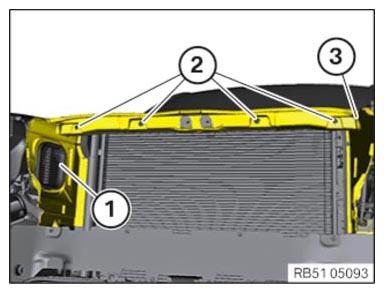

- Unclip the cover (1), if necessary remove it on both the sides.
- Detach the expanding rivet (2) from the air duct (3).

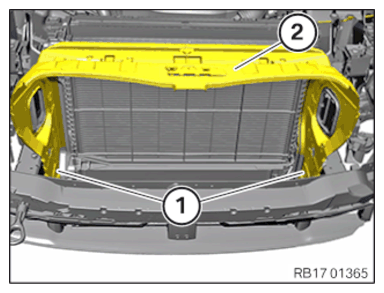

- Unlock the locks (1).
- Slide the upper air duct (2) upwards and remove.

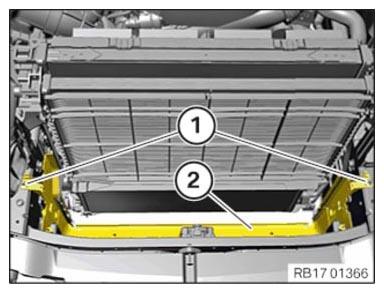

- Detach the expanding rivets (1) from the lower air duct (2).

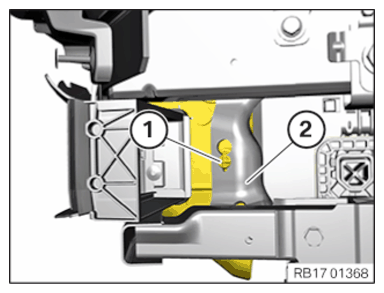

- Slide the lower air duct (1) out of the left-hand holder (2).
- Slide lower air duct (1) out and remove.

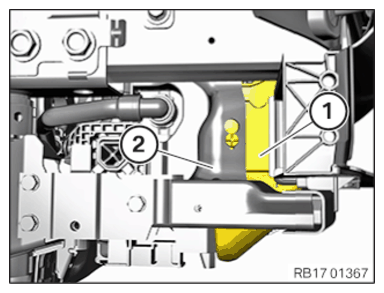

- Remove bottom air routing (1) from right holder (2).
- Slide lower air duct (1) out and remove.
