Remove A-pillar trim panel on the left and right
NOTE:
Description is for left component only. Procedure on the right side is identical.
Removing the A-pillar trim panel
WARNING:
Pyrotechnic components.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- All work on pyrotechnic parts may be carried out by technically experienced and appropriately trained personnel only.
- Replace any damaged part or ones that have been dropped.
- For additional information see: SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS .

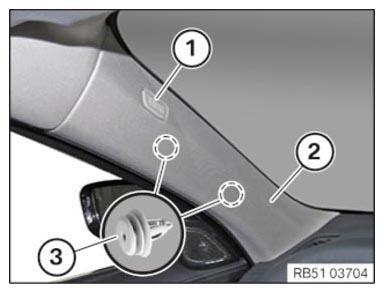

- Unclip cover panel (1) and unscrew the bolt below it.
- Detach A-pillar trim panel (2) from the clips (3) and remove upward.
