Partially install the B-pillar trim panels at the top left and right
NOTE:
Description is for left component only. Procedure on the right side is identical.

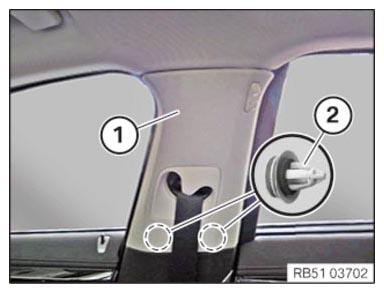

Install the top B-pillar trim panel partially
- Guide in the B-pillar trim panel (1) at the top on the headliner and clip into the clips (2).
- Check the front and rear of the B-pillar trim panel (1) for the correct fit at the edge protection.
