Open all vents on headlight
Open all vents on headlight

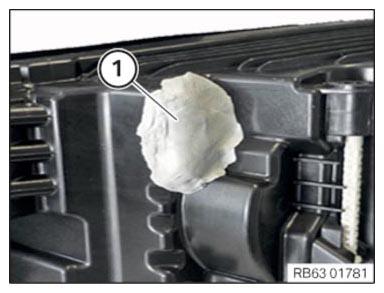

Completely remove butyl (1) at all sealed vents.
Courtesy of BMW OF NORTH AMERICA, INC.

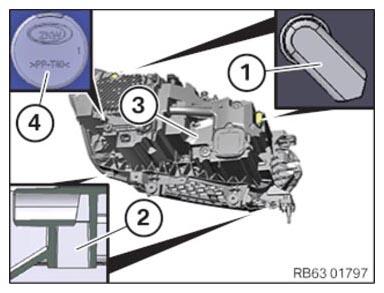

Correctly attach the vents (1) and (4) to the headlight (3).
Completely remove butyl at vents (2).
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
