Installing the trim of the bumper cover on the left and right side
NOTE:
Description is for left component only. Procedure on the right side is identical.
Installing the trim on the side bumper panel
NOTE:
TECHNICAL INFORMATION
Detents, guides and mounting elements must not be damaged or missing.

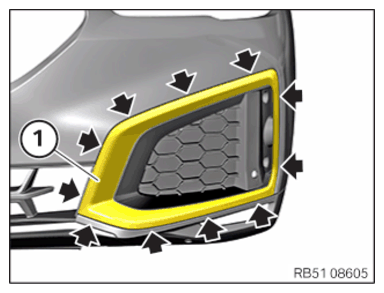

- Install the trim (1) and snap it into the rear detents (arrows).
