Installing the trim for the left and right side rear window frames
NOTE:
Perform the steps on the left and right side.
Install the trim for the rear window frame
NOTE:
Description is for left component only. Procedure on the right side is identical.

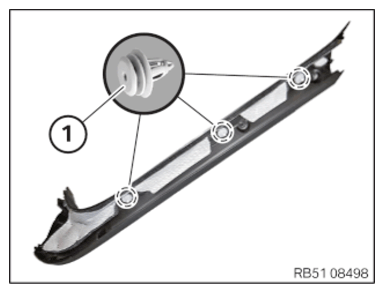

- Check clips (1) for damage and replace if necessary.

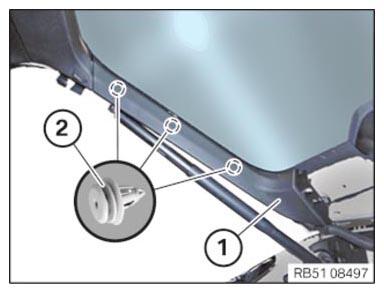

- Position and clip in the trim (1) for the rear window frame at the clips (2).
