Installing the left and right sun visor

NOTE: Description is for left component only. Procedure on the right side is identical.

Install the sun visor

Connect and lock the associated connectors and install the sun visor.

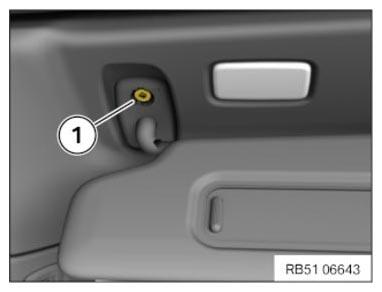

Tighten down screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

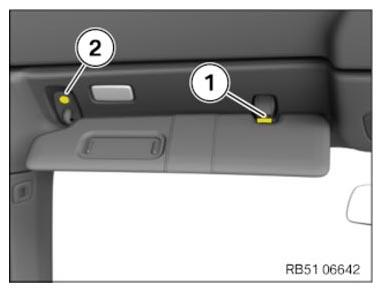

Clip in the cover (2).
Attach the sun visor on the counter support (1).

Courtesy of BMW OF NORTH AMERICA, INC.
