Installing the fog light bracket on the left and right
NOTE:
Description is for left component only. Procedure on the right side is identical.
Installing fog light support
NOTE:
TECHNICAL INFORMATION
Detents, guides and mounting elements must not be damaged or missing.
Detents, guides and mounting elements must not be damaged or missing.

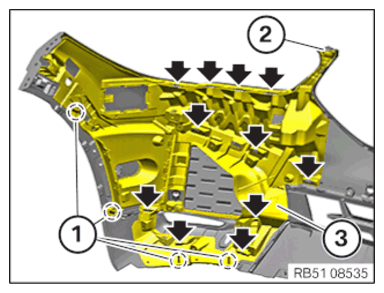

- Correctly position the fog light bracket (3) and engage at detents (arrows).
- Tighten down screw (2).
TIGHTENING TORQUES SPECIFICATION
| Front fog lamp holder to bumper panel | ||
| screw | Tightening torque | 3 Nm |
- Mount blind rivet (1) using the special tool 0 496 521 (00 2 230).
- Connect and lock the plug connections.

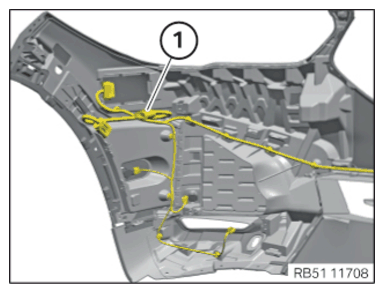

- Correctly position wiring harness (1) and clip in place at all clips.

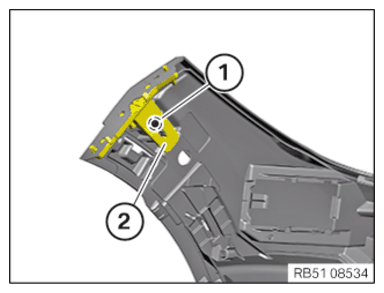

- Position holder (2).
- Tighten down screw (1).
TIGHTENING TORQUES SPECIFICATION
| Front fog lamp holder to bumper panel | ||
| screw | Tightening torque | 3 Nm |
