Install right door sill trim panel

Precondition

Front door is open.

NOTE: RISK OF DAMAGE
Mechanical effects.
Paint damage.

Mask those working areas at risk with yellow plastic adhesive tape.
Remove and install heavy or bulky components with the aid of another person/other persons.

NOTE: Description is for left component only. Procedure on the right side is identical.

Installing the door sill trim panel

Precondition

Front door is open.

NOTE: RISK OF DAMAGE
Mechanical effects.
Paint damage.

Mask those working areas at risk with yellow plastic adhesive tape.
Remove and install heavy or bulky components with the aid of another person/other persons.

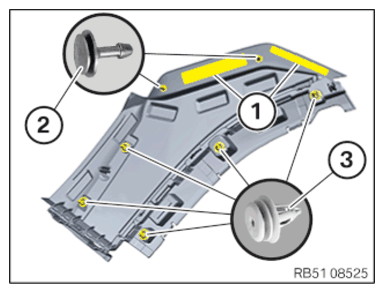

Replace the double-sided adhesive tape in the area (1).
Parts: Double-sided adhesive tape
Check the clips (2) and (3) for damage and replace where required.

Courtesy of BMW OF NORTH AMERICA, INC.

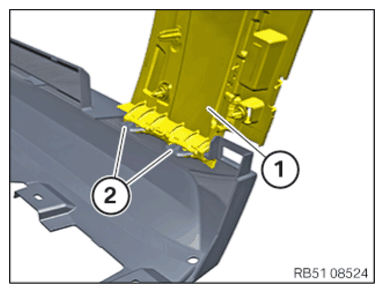

Position the trim (1) at the snap-in lugs (2) and engage.

Courtesy of BMW OF NORTH AMERICA, INC.

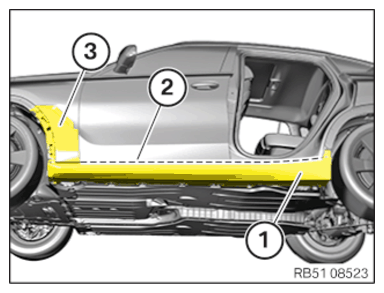

Position the door sill trim panel (1) on the vehicle with the trim (3).
Clip in the door sill trim panel (1) along the dotted line (2).

Courtesy of BMW OF NORTH AMERICA, INC.

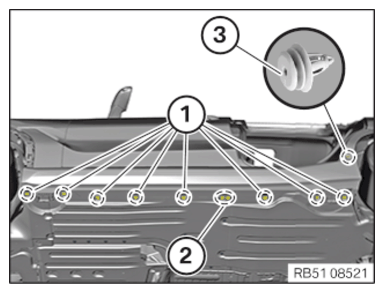

Clean the adhesive area (1).

CONSUMABLE SPECIFICATION

Cleaning agent R2

500 ml

83190417324

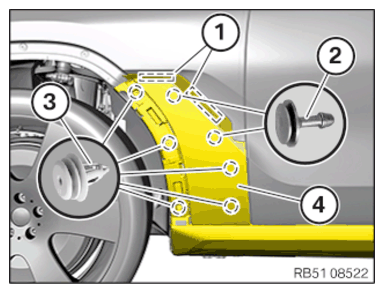

Clip in the trim (4) at the clips (2) and (3).

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUES SPECIFICATION

Courtesy of BMW OF NORTH AMERICA, INC.
