Install air duct
NOTE:
TECHNICAL INFORMATION
Detents, guides and mounting elements must not be damaged or missing.
Detents, guides and mounting elements must not be damaged or missing.

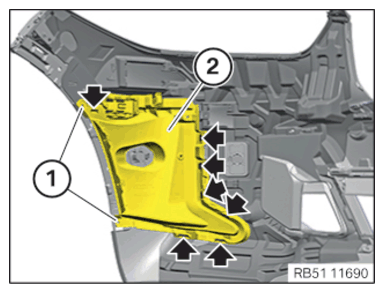

- Correctly position the air duct (2) and snap it in at the detents (arrows).

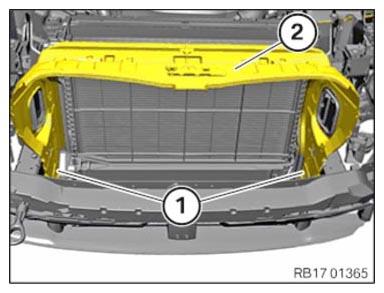

- Mount blind rivets (1) using special tool 0 496 521 (00 2 230).

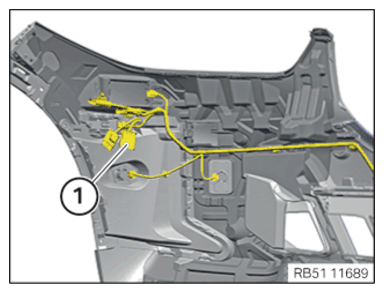

- Properly position wiring harness (1) and clip it in place at all clips.
- Connect connectors and lock.

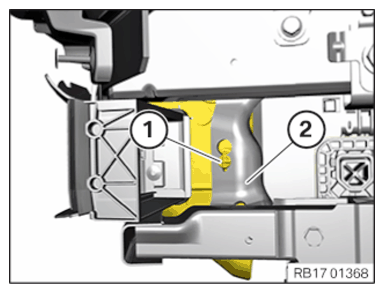

- Insert lower air duct (1) into the left-hand holder (2).

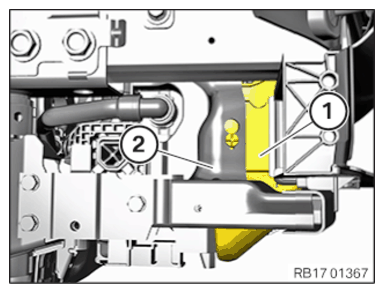

- Insert lower air duct (1) into the right-hand holder (2).

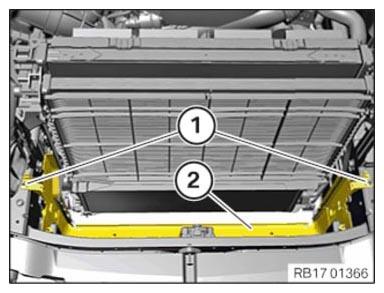

- Fit expanding rivets (1) to the lower air duct (2).

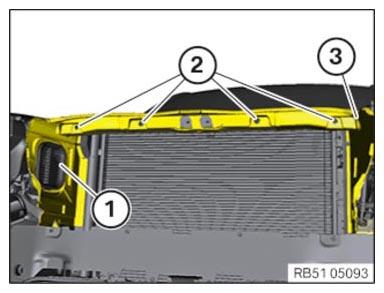

- Insert upper air duct (2) and fit to the lower air duct.
- Lock the locks (1).
- Fit expanding rivets (2) to the air duct (3).
- Clip in the cover (1), if necessary install it on both the sides.
- Secure the wiring harnesses on the air duct.
