Install D-pillar trim panel on left and right

NOTE: Description is for left component only. Procedure on the right side is identical.

NOTE: Perform the steps on the right and left side.

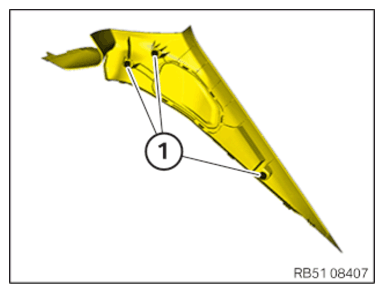

Check whether the clips (1) are present and have damage.
Damaged or missing clips (1) must be replaced.

Courtesy of BMW OF NORTH AMERICA, INC.

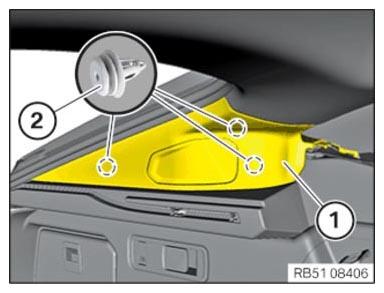

Correctly position D-pillar trim panel (1) and clip in at the clips (2).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Perform the steps on the left and right side.

Installing D-pillar trim panel

NOTE: Description is for left component only. Procedure on the right side is identical.

Check if the clips (1) are damaged and if available.
Damaged or missing clips (1) must be replaced.

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.
