Initialize panorama glass roof
- Close all doors.
- US version: Start engine.
- If not US version: Operate the START-STOPPING button three times within 0.8 s.

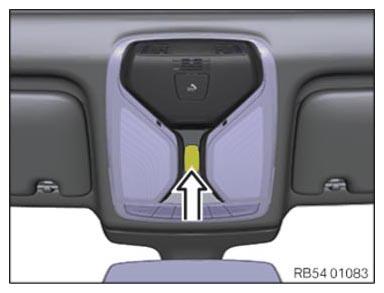

- Press and hold the switch in the "Raise" direction.
- In the event of a delayed start or sudden stop of the panoramic glass roof: Continue to hold the switch in the "Raise" direction.
NOTE:
TECHNICAL INFORMATION
If the switch is released in the meantime, restart the initialization.
If the switch is released in the meantime, restart the initialization.
- Keep pressing the switch during the entire procedure (approx. 50 s):
- The initialization starts about 15 s after keystroke.
- The panorama glass roof and both roller sunblinds are each opened and closed completely.
The initialization is complete when the panoramic glass sunroof and both roller sunblinds are completely closed. Button can be released.
- Carry out functional check (one-touch mode, anti-trapping protection and, if necessary, comfort function).
- Clear fault memory in FZD control unit.
