Removing the left and right rear diffuser
Removing the left and right rear diffuser
NOTE:
Description is for left component only. Procedure on the right side is identical.

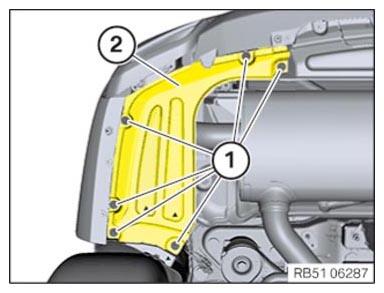

Loosen screws (1).
Feed out and remove the rear diffuser (2).
Courtesy of BMW OF NORTH AMERICA, INC.
