Removing the carrier plate
Removing the carrier plate

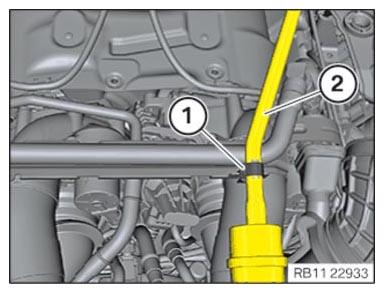

Unclip the purge airline (2) from the holder (1).
Courtesy of BMW OF NORTH AMERICA, INC.

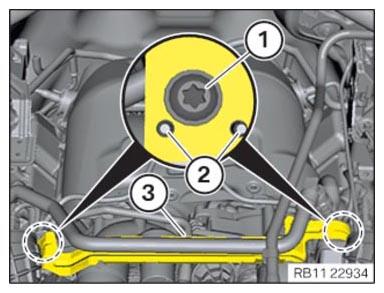

Loosen screws (1).
Feed out the carrier plate (3) from the centering pins (2) and remove it.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
