Remove transmission cross-member

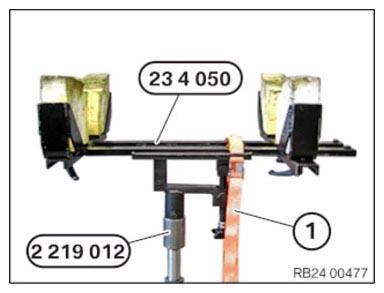

- Support the transmission using special tools 2 219 012 and 0 495 498 (23 4 050).
- Secure the transmission with the luggage strap (1).

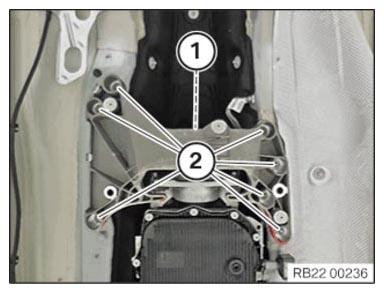

- Loosen screw (1).
- Loosen screws (2).
- Remove the transmission cross member and lower the transmission a little.
- Support the transmission using special tools 0 495 498 (23 4 050) and 2 219 012.
- Secure the transmission with the luggage strap (1).

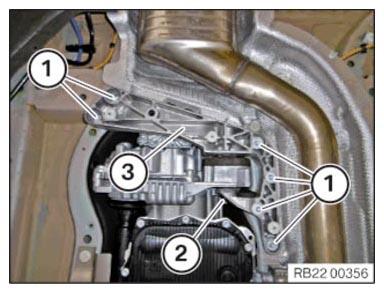

- Loosen screws (1).
- Loosen screw (2).
- Remove the transmission cross member (3).
